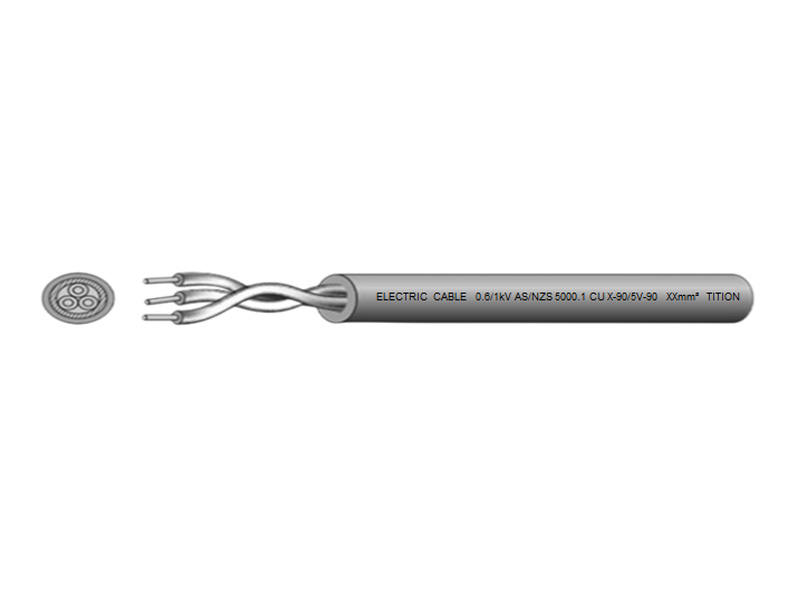

PRODUCT DESCRIPTION
Rated temperature：90ºC
Rated voltage：0.6/1kV
Reference standard：AS/NZS 5000.2
Conductor:Meets AS/NZS1125 standards for Class 1, 2 or 5 copper wires
Insulation:Compliant with AS/NZS 3808
Meets AS/NZS 5000.1 flame retardant requirements
Environmental requirements: RoHS & REACH;
APPLICATION
0.6/1(1.2)kV single-core or multi-core polymer insulated sheathed wire and cable
Product parameters
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| AWG | Core.Number | Nom.Thick. | Average | |||
| mm | mm | |||||
| 2.50 | 2× | 0.70 | 7.20 | 7.98 | ||
| 3× | 0.70 | 7.80 | ||||
| 4× | 0.70 | 8.70 | ||||
| 4.00 | 2× | 0.70 | 8.40 | 4.95 | ||
| 3× | 0.70 | 9.10 | ||||
| 4× | 0.70 | 10.20 | ||||
| 6.00 | 2× | 0.70 | 9.60 | 3.30 | ||
| 3× | 0.70 | 10.40 | ||||
| 4× | 0.70 | 11.60 | ||||
| 10.00 | 2× | 0.70 | 11.60 | 1.91 | ||
| 3× | 0.70 | 12.50 | ||||
| 4× | 0.70 | 14.00 | ||||
