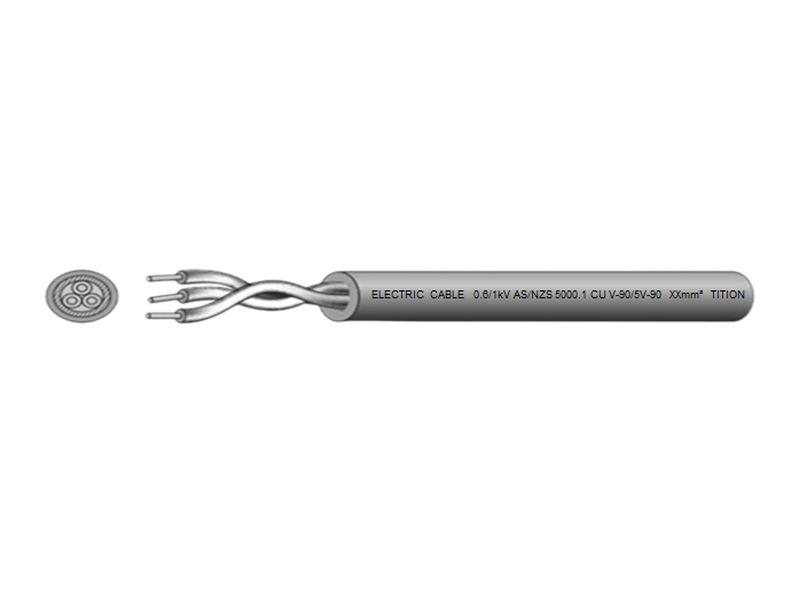

PRODUCT DESCRIPTION
Rated temperature ：90ºC
Rated voltage ：0.6/1kV
Reference standard：AS/NZS 5000.2
Conductor:Meets AS/NZS1125 standards for Class 1, 2 or 5 copper wires
Insulation:Compliant with AS/NZS 3808
Meets AS/NZS 5000.1 flame retardant requirements
Environmental requirements: RoHS & REACH;
APPLICATION
0.6/1(1.2)kV single-core or multi-core polymer insulated sheathed wire and cable
Product parameters
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| AWG | Core.Number | Nom.Thick. | Average | |||
| mm | mm | |||||
| 2.50 | 2× | 1.27 | 10.50 | 7.98 | ||
| 3× | 1.29 | 11.20 | ||||
| 4× | 1.32 | 12.30 | ||||
| 4.00 | 2× | 1.34 | 12.70 | 4.95 | ||
| 3× | 1.36 | 13.50 | ||||
| 4× | 1.41 | 14.80 | ||||
| 6.00 | 2× | 1.38 | 14.00 | 3.30 | ||
| 3× | 1.41 | 14.90 | ||||
| 4× | 1.46 | 16.40 | ||||
| 10.00 | 2× | 1.50 | 16.00 | 1.91 | ||
| 3× | 1.48 | 17.20 | ||||
| 4× | 1.54 | 19.00 | ||||
